I ran PCA on the South Asian populations included in Reference II dataset as well as 38 South Asian participants of Harappa Project. This is sort of a complementary analysis to the Ref1 South Asian one, as this one includes Kalash, Hazara and the additional South Asian groups in Xing et al.
The reference populations included are: Andhra Brahmin, Andhra Madiga, Andhra Mala, Balochi, Bnei Menashe Jews, Brahui, Burusho, Cochin Jews, Gujaratis, Gujaratis-B, Hazara, Irula, Kalash, Makrani, Malayan, Nepalese, North Kannadi, Paniya, Pathan, Punjabi Arain, Sakilli, Sindhi, Singapore Indians, Tamil Nadu Brahmin, and Tamil Nadu Dalit.
Here's the spreadsheet showing the eigenvalues and the first 15 principal components for each sample.
Here are the first 15 eigenvalues:
Here is a 3-D PCA plot (hat tip: Doug McDonald) showing the first three eigenvectors. The plot is rotating about the 1st eigenvector which is vertical. Also, I have stretched the principal components based on the corresponding eigenvalues. Also, you can highlight the individual project participants in the plot by using the dropdown list below the plot.
Your browser does not support frames. Go here to see the animation.

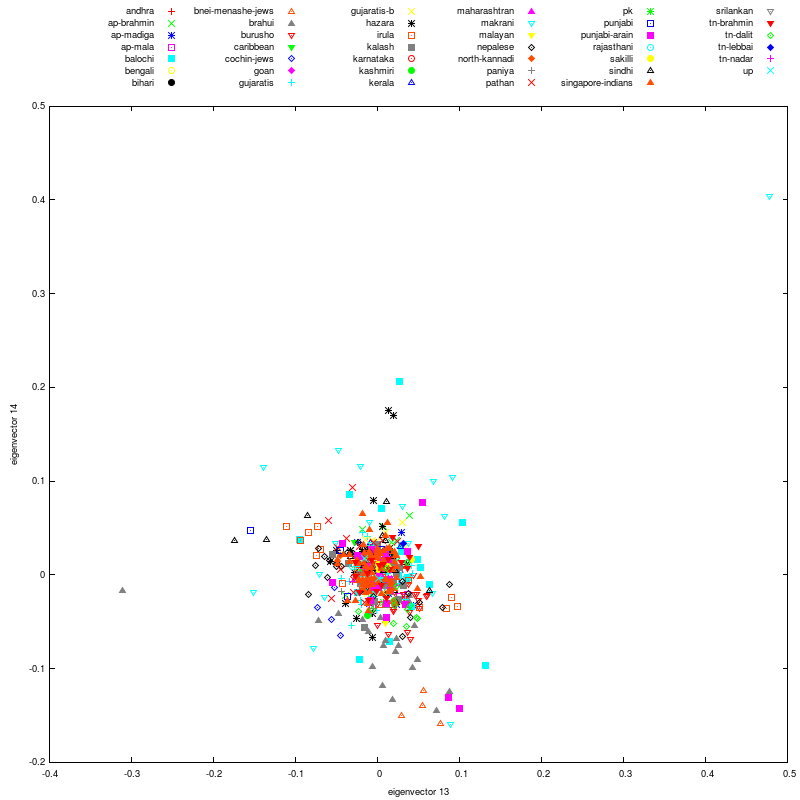

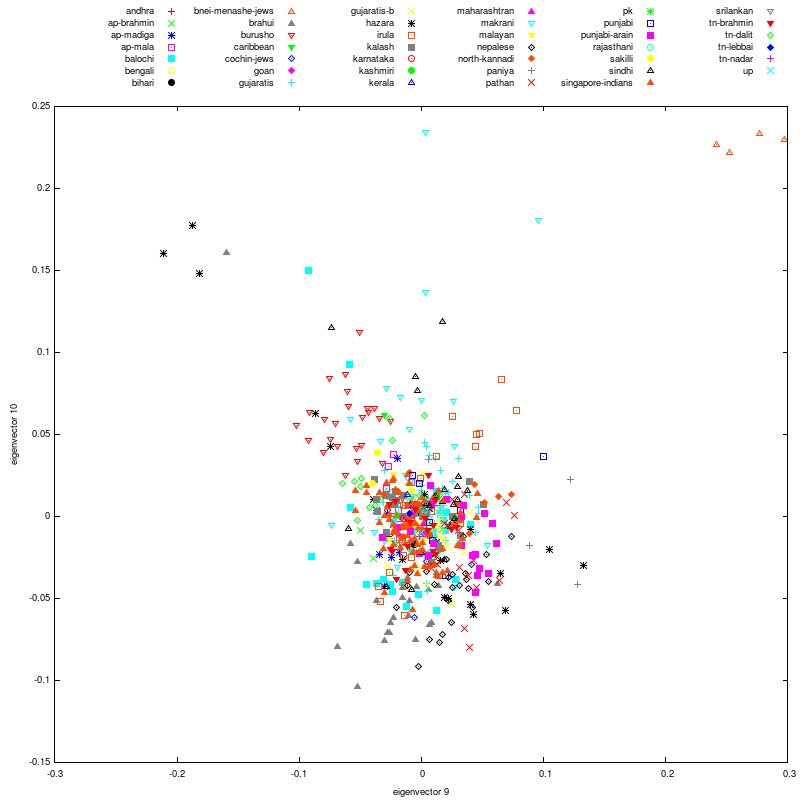

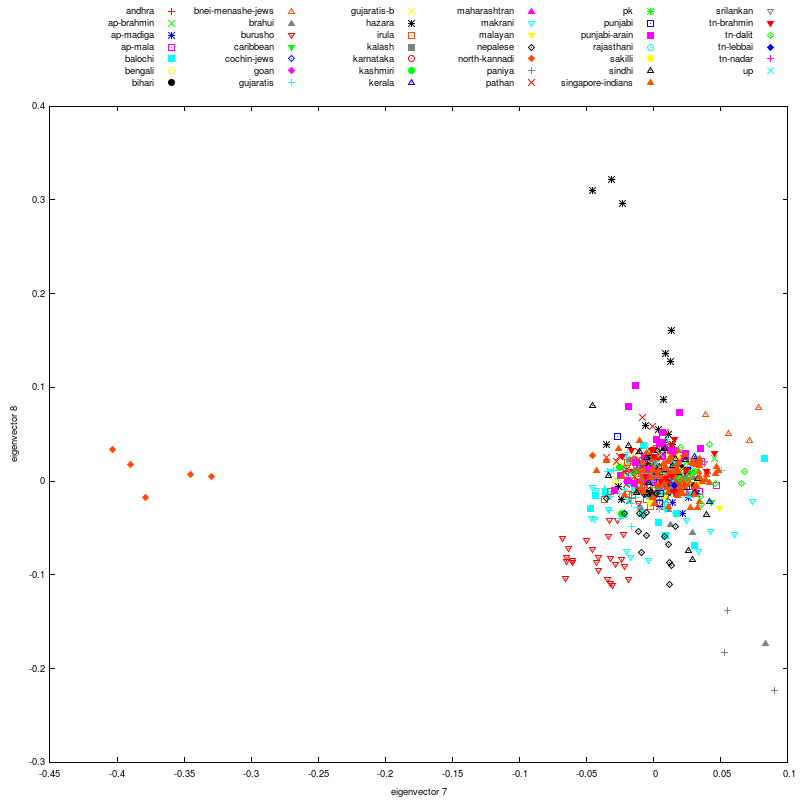

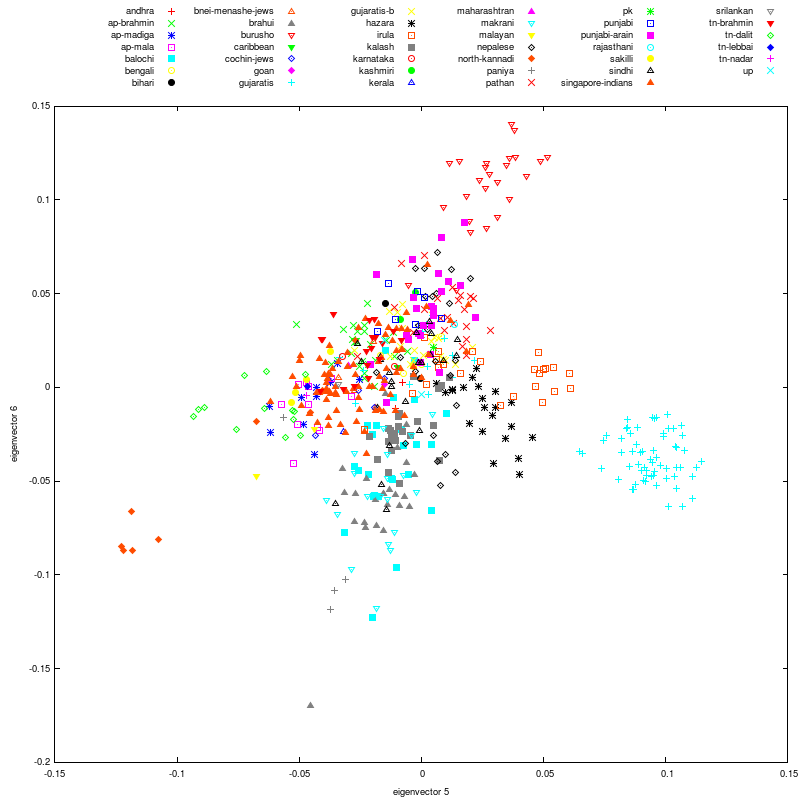

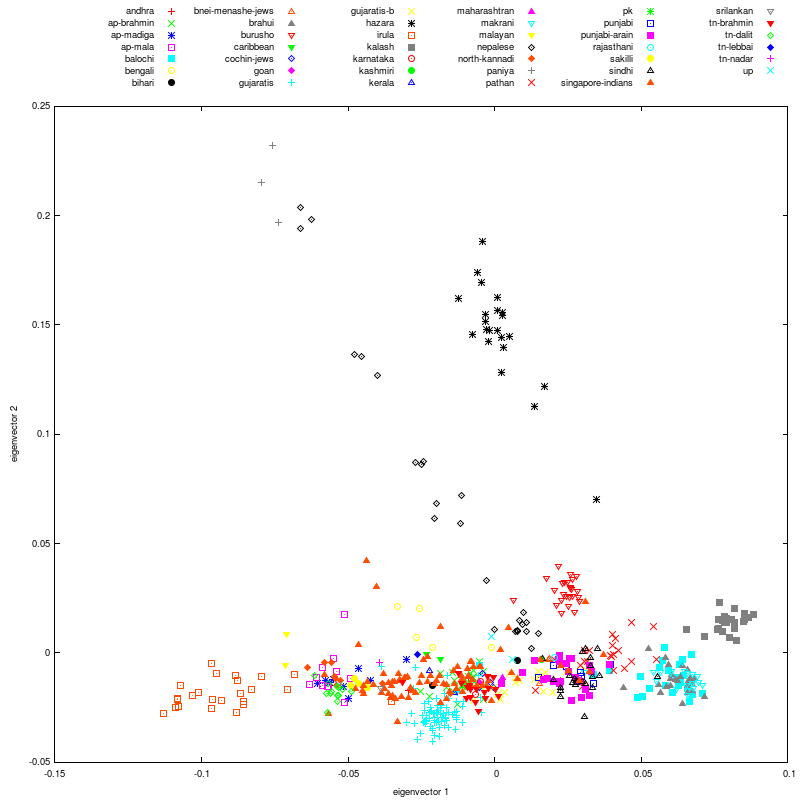

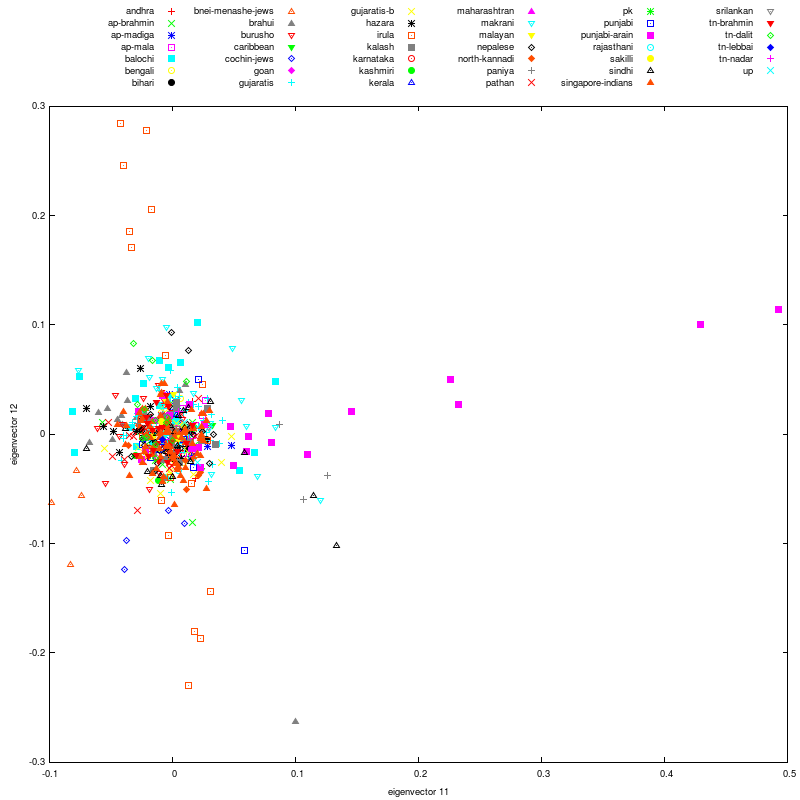

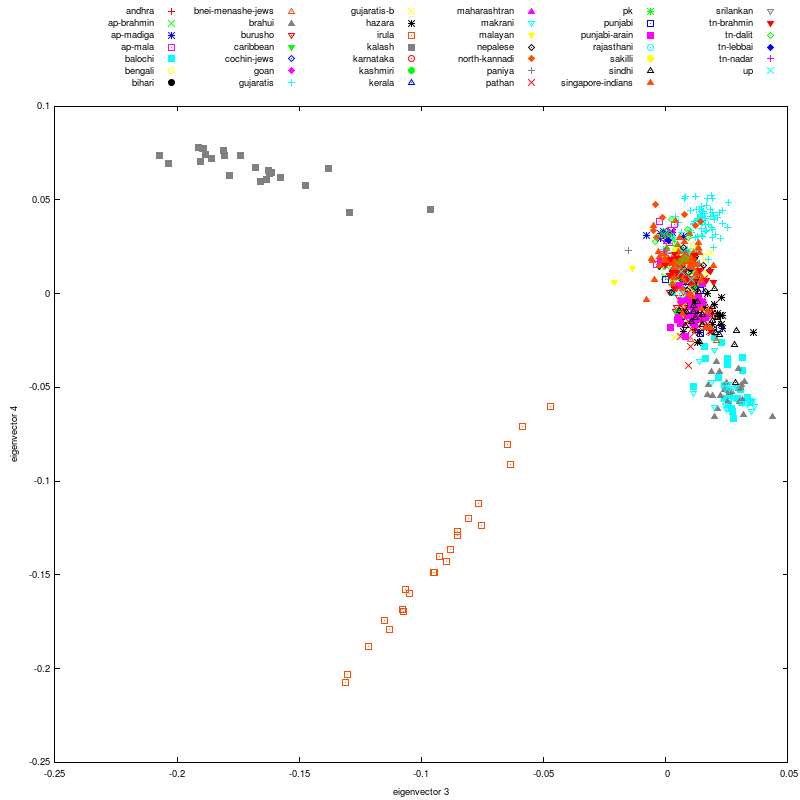

Now here are plots of the first 14 eigenvectors. In this case, I have not stretched the principal components, so keep in mind that the first eigenvector explains 1.75 times variation compared to the 2nd eigenvector.
