South Asian PCA + Mclust

I combined reference 3 with Metspalu et al data and Harappa Ancestry Project participants (up to HRP0200). Then I kept only those individuals whose combined proportion of South Asian and Onge components on my reference 3 admixture results was more than 50%.

I ran PCA on these South Asian samples and kept 31 dimensions. Running Mclust on the PCA results gave me 37 clusters.

The clustering results are in a spreadsheet.

For an individual, the value under a specific cluster shows the probability of that person belonging to that cluster. For example, HRP0152 has a 58% probability of belonging to cluster CL8 and 42% probability of being in cluster CL14.

For the populations in the first sheet, I added up the probabilities of all the samples in that population to get the expected number of individuals of that ethnicity belonging to a specific cluster.

In the second sheet, I have listed all the individual samples' clustering results.

There are some outliers who didn't belong in any cluster: HRP0001 (me, of course), 7 (out of 18) Makranis, 4 (out of 23) Sindhis, 3 (all) Great Andamanese, 1 (out of 20) Balochi, 1 (out of 4) Madiga, and 1 (only) Onge.

Related Reading:

Reference 3 + Yunusbayev + HAP PCA and Mclust

I ran Principal Component Analysis (PCA) on reference 3 along with Yunusbayev et al Caucasus dataset and Harappa Ancestry Project participants (up to HRP0200).

Then I ran mclust on the first 70 dimensions. The resulting 156 clusters can be seen in a spreadsheet.

For individuals belonging to Harappa Ancestry Project, the value in a column shows that person's probability of being in that cluster. So if there is a 1 in CL15 for example, then that person has a 100% probability of being in Cluster CL15.

For the reference population groups, I have added up the probabilities for all the individuals belonging to that group.

Related Reading:

Reference 3 PCA Clustering for South Asians

Using the first 32 dimensions of the Reference 3 PCA, I tried to classify the 51 South Asian populations. I did not try a full clustering on all populations because that took too long and seemed like there were more than 150 clusters.

You can see the South Asians on 3-D PCA plots of the first four principal components.

The clustering results from Mclust are in a spreadsheet.

PS. I used 32 eigenvectors as that's what gave me the maximum number of clusters with a small number of outliers.

Related Reading:

Ref2 South Asian + Harappa Admixture

Using the reference II dataset of 548 South Asians and 38 Harappa Project South Asians that I have been working on, I ran Admixture.

The optimum number of ancestral components was 5-6. So I used K=6. The components are highest among the following groups:

C1 Brahui, Makrani, Balochi C2 TN Dalit, North Kannadi
C3 Irula C4 Gujaratis
C5 Hazara C6 Kalash

I consider the Irulas, a Scheduled tribe from Tamil Nadu, to be problematic in a similar way to the Kalash except that the Irulas are well-scattered in their own space in the PCA plot.

Also, note that all the European, West Asian, etc is being represented by C1. Similarly, all the East Asian ancestry is being collected in C5.

The spreadsheet showing the admixture results is here. The first sheet shows the individual results for the project participants.

The 2nd sheet shows the average (and standard deviation) for the reference populations.

The 3rd sheet shows the average and standard deviation for each cluster computed by MClust from PCA.

The 4th sheet shows the average and standard deviation for each cluster computed by MClust from MDS.

Also, take a look at the admixture percentage standard deviations. You'll notice that those are generally lower for the clusters compared to the population groups.

Related Reading:

Ref 2 South Asians + Harappa MDS Clusters

Why do MDS clusters when we already did PCA-based clustering for this data?

You guys probably know about Dienekes' Clusters Galore approach. The way it works is that varying the number of MDS dimensions used you compute the number of clusters inferred (done using Mclust) and use the number of MDS dimensions which give you the maximum number of clusters.

This sounded a little unsatisfactory for me. So I ran an experiment. I computed 100 MDS dimensions for the samples in this dataset which includes South Asians from Reference II as well as 38 Harappa participants. Then I kept 2,3,4,...,100 dimensions and ran NNClean (to get initial noise/outlier estimate) and Mclust on them.

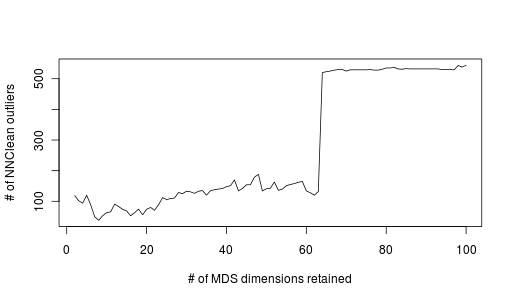

This first graph shows the number of outliers NNclean computed from 586 samples.

Things go crazy with NNclean when 64 or more MDS dimensions are retained since it considers most of the samples to be noise then.

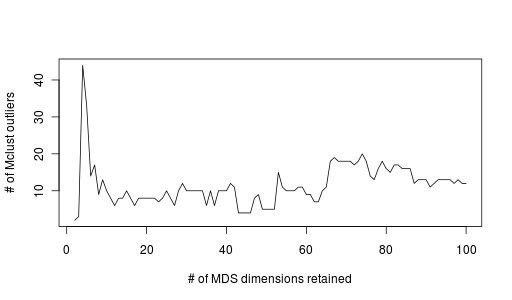

Now let's look at the number of outliers identified after Mclust's clustering procedure.

This shows us that probably somewhere between 8 and 65 MDS dimensions might be useful to keep.

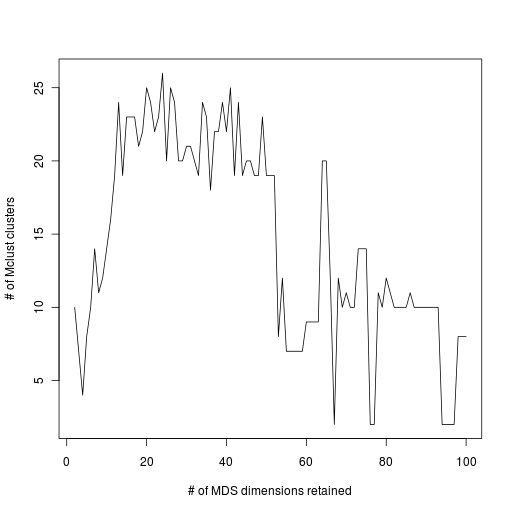

Finally, a plot of the number of clusters inferred by Mclust versus the number of MDS dimensions used.

There are two big jumps here to consider. One is around 12 MDS dimensions and the other after 52. So we are looking at an optimum number of MDS dimensions between 12 and 52. However, in that range, the number of clusters computed is fairly noisy between 18 and 26. The only pattern I can discern with some smoothed fitting is that we should likely be looking at somewhere between 20 and 30 MDS dimensions.

But why choose the maximum number of clusters (26 clusters when 24 MDS dimensions are kept)? That could be the result of noise too.

Is there some other way to figure out what are the significant number of MDS dimensions to keep for population structure? It turns out there is. Patterson, Price and Reich proposed Tracy-Widom statistics for Principal Component Analysis in their paper "Population Structure and Eigenanalysis". We also know that the MDS analysis we are performing is the classical metric MDS which is in some ways equivalent to a PCA. Looking at the Tracy Widom stats then, we see that about 25 eigenvalues are significant. Thus, keeping 24 MDS dimensions to maximum the number of clusters seems defensible.

Finally, here are the clustering results.

Related Reading:

Ref 2 South Asians + Harappa PCA Clusters

Using the fifteen principal components shown before, I tried to use MClust to cluster the 573 individuals.

This time, I ran NNclean first to find out the outliers. NNClean pointed to the following as outliers:

HGDP00104 HGDP00100 HGDP00119 HGDP00112 HGDP00118 HGDP00279 HGDP00060 HGDP00029 HGDP00076 HGDP00041 HGDP00146 HGDP00163 HGDP00234 HGDP00412 HGDP00090 HGDP00148 HGDP00165 HGDP00068 HGDP00134 HGDP00149 HGDP00052 HGDP00074 HGDP00098 HGDP00153 HGDP00173 HGDP00376 HGDP00143 HGDP00158 HGDP00145 HGDP00161 HGDP00151 HGDP00243 HGDP00139 HGDP00140 HGDP00177 HGDP00224 GSM536497 GSM536806 GSM536807 GSM536808 I16 I3 I5 SS231506 HRP0001

As you can see, I am included in this list.

Then I used this list of outliers to initialize "noise" in the MClust procedure. The final list of outliers is as fllows:

HGDP00279 HGDP00029 HGDP00134 HGDP00151 GSM536806 GSM536807 GSM536808

These are 1 Kalash, 1 Brahui, 2 Makranis, and 3 Paniyas.

There are a bunch of interesting things in the results. For example, Pathans and Punjabis were mostly indistinguishable by this technique. But let me leave you with a caution: Some of these clusters are nice, tight ones and others are loose, long ones, so don't overread the results.

Related Reading:

Reference II PCA

I ran PCA on the Reference II dataset which includes 3.161 samples from various populations but with only 23,000 SNPs in common.

Here are the top ten eigenvalues:

  • 219.225396
  • 146.835968
  • 20.719760
  • 9.721733
  • 7.552482
  • 6.216977
  • 3.991663
  • 3.484690
  • 3.106919
  • 2.805874

While the first two eigenvalues are much bigger than the rest, the first explains 7.12% of the variation and the second 4.77%, the Tracy-Widom stats show that about 54 eigenvectors are significant.

Here are the plots for the first 10 principal components. Remember that the 1st eigenvector is 1.5 times the 2nd.

Here is a 3-D PCA plot (hat tip: Doug McDonald) showing the first three eigenvectors. The plot is rotating about the 1st eigenvector which is vertical. Also, I have stretched the principal components based on the corresponding eigenvalues.

I also ran MClust on the PCA data and got 17 clusters. The results are in a spreadsheet. I am sure with more principal components than the 10 I used, I would be able to deduce finer population structure.

Do take a look at the clusters assigned to the South Asian populations from Xing et al.

Related Reading:

Reference I PCA

I ran PCA on the Reference I dataset which includes 2,654 samples from various populations.

Here are the top ten eigenvalues:

  • 178.727040
  • 118.884690
  • 15.014072
  • 9.346602
  • 5.983225
  • 5.140090
  • 3.322723
  • 2.739313
  • 2.559640
  • 2.475389

While the first two eigenvalues are much bigger than the rest, the first explains 6.82% of the variation and the second 4.54%, the Tracy-Widom stats show that about 70-something eeigenvectors are significant.

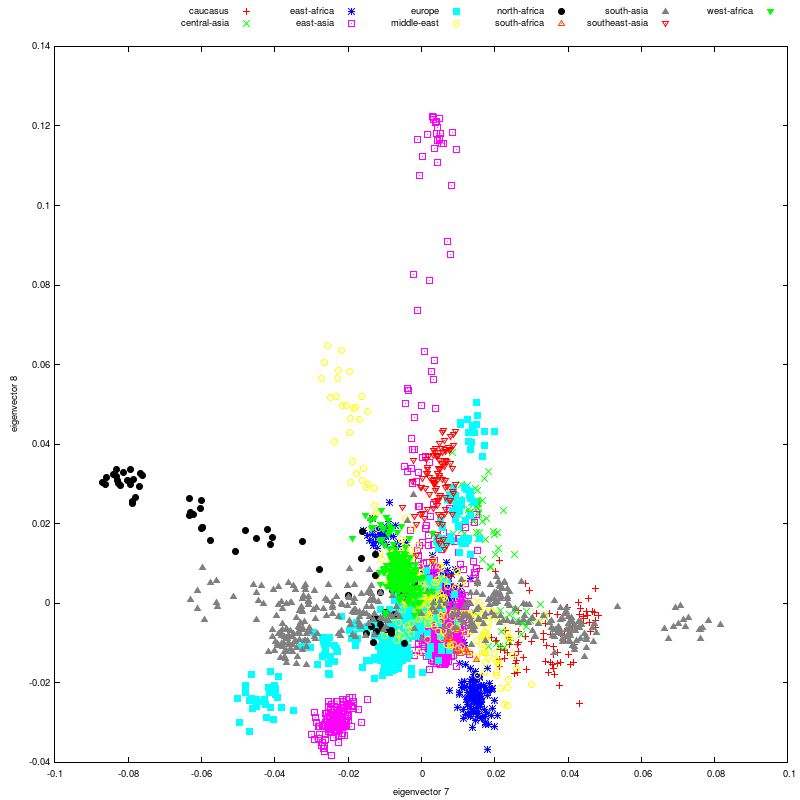

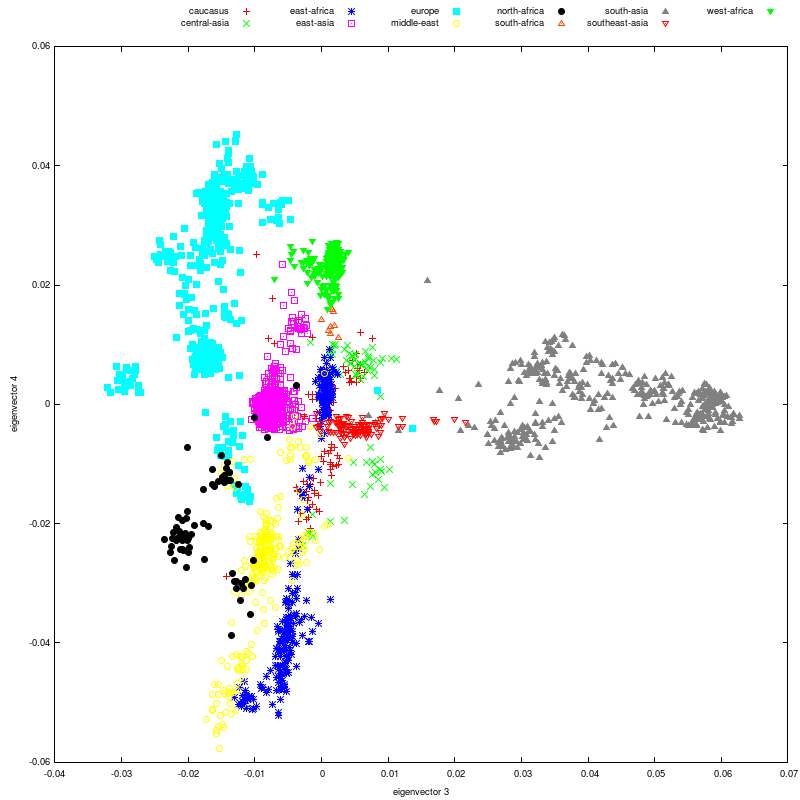

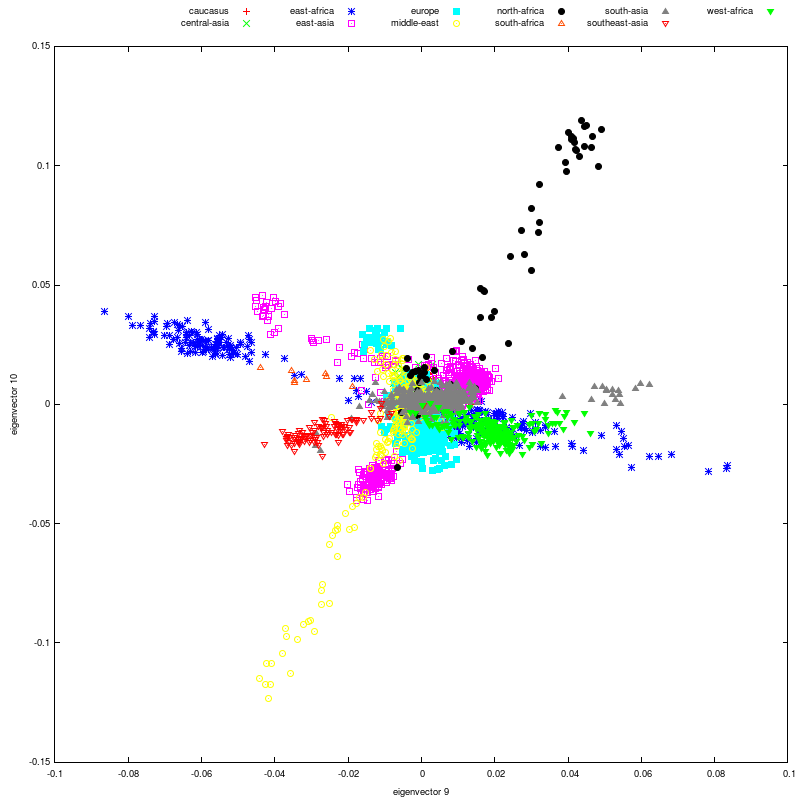

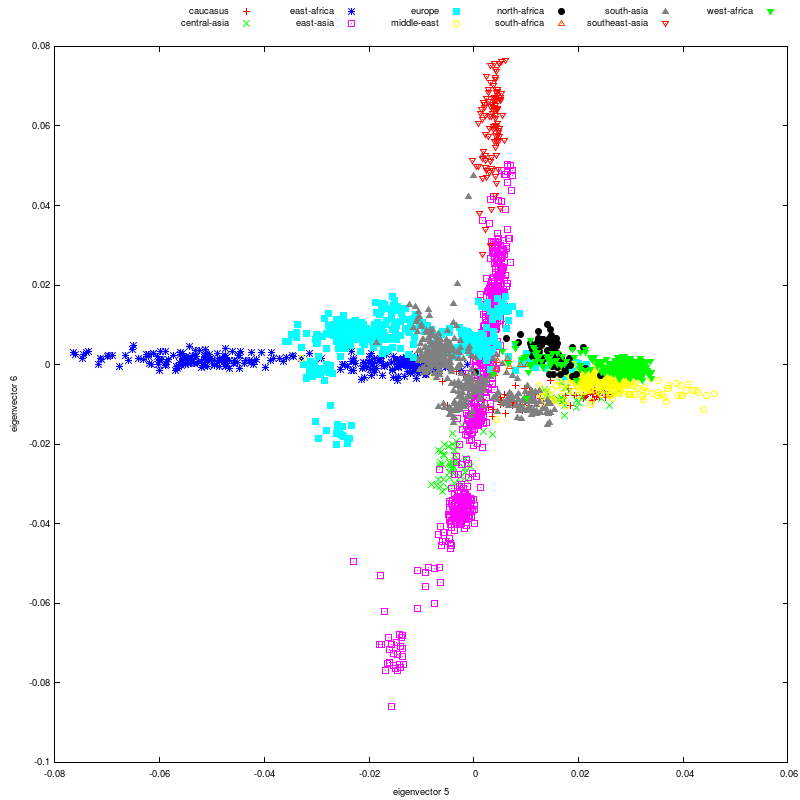

Here are the plots for the first 10 principal components. Remember that the 1st eigenvector is 1.5 times the 2nd.

Here is a 3-D PCA plot (hat tip: Doug McDonald) showing the first three eigenvectors. The plot is rotating about the 1st eigenvector which is vertical. Also, I have stretched the principal components based on the corresponding eigenvalues.

I also ran MClust on the PCA data and got 16 clusters. The results are in a spreadsheet. I am sure with more principal components than the 10 I used, I would be able to deduce finer population structure.

Note that African Americans cluster with East Africans in CL1. That's because African Americans have some European ancestry (20% on average) and that pulls them away from West Africans and towards Europeans. East Africans also lie in that direction, so they cluster together in a PCA. However, that doesn't mean that African Americans have East African ancestry. If you look at the Admixture results for African Americans, you see that their East African ancestry is negligible.

Related Reading:

Ref1 South Asian + Harappa MDS MClust

Now I am going nuts on this dataset consisting of South Asians (minus Kalash and Hazara) from Reference I and some Harappa participants, but I promise this is the last item on this specific data. I will however do similar analyses some time after integrating all the new South Asian samples I have gotten (via project participation as well as from research data).

I ran MDS on the data in Plink and then retaining various number of MDS dimensions, ran MClust on it. This is what Dienekes calls Clusters Galore.

Here are the plots of the MDS, two dimensions at a time.

The graph of number of MDS dimensions retained versus optimum number of clusters computed by Mclust is as follows:

The maximum number of clusters (28) are inferred with 8 MDS dimensions. So I posted the clustering results for 8 MDS dimensions + 28 clusters.

Some observations on the clusters:

  1. 56 of the 62 Gujaratis are in cluster CL1 and the remaining 6 are in CL5. Both are Gujarati-only clusters. Let's see where the Harappa Gujaratis fall next time I do this analysis,
  2. CL2 has an Andhra Reddy, Caribbean Indians, a Keralan, a few Gujaratis-B, and a third of the Singapore Indians.
  3. Gujaratis-B are a varied lot spread out into CL3, CL7, CL2, CL8, CL4, CL6, and CL15, but half are in CL3.
  4. CL6 has a lot of the South Indian Brahmins
  5. Burusho are isolated
  6. Punjabis from the project seem to be divided among CL7, CL8 and CL15.

I also posted the results for 20 MDS dimensions resulting in 21 clusters.

Related Reading:

Ref1 South Asian + Harappa Admixture

Since I was working on this dataset consisting of South Asians (minus Kalash and Hazara) from Reference I and some Harappa participants, I thought I would run Admixture on it.

The optimum value for the number of ancestral populations K is 3 in this case. Roughly the three ancestral components correspond to South India, Balochistan and Gujarat.

The spreadsheet showing the admixture results is here. The first sheet shows the individual results for reference samples as well as project participants.

The 2nd sheet shows the average (and standard deviation) for the reference populations.

The 3rd sheet shows the average and standard deviation for each cluster computed by MClust. I included only the samples which had at least 90% probability of belonging to a cluster.

Note how clusters CL8, CL9 and CL13 have a lot more variation than the others. Of course, I am in CL9 along with some fairly eclectic samples.
